ExtJs 4 MVC Architecture tutorial using Java Servlets - Part 3

Click here for previous Chapter

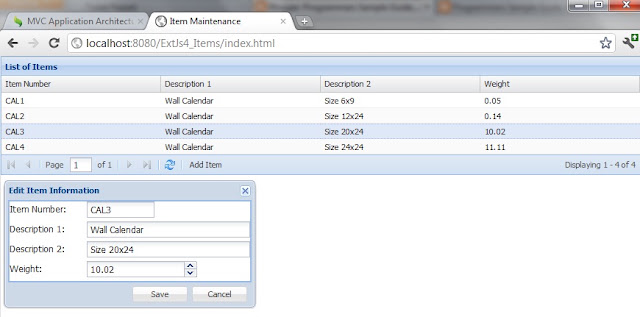

In the previous post we have defined the Application(app.js), Model(Item.js), Store(Items.js), GridPanel(List.js) and Window for editing(Edit.js). In this chapter we are going to discuss the controller which is going to bind all the things together and make our application work. Before that lets see how our grid and the window looks like.

ExtJs 4 MVC Architecture tutorial using Java Servlets
ExtJs 4 MVC Architecture tutorial using Java Servlets

ExtJs 4 MVC Architecture tutorial using Java Servlets

Step 9: Define the controller that will bind everything together - Items.js

Ext.define('IN.controller.Items', {
            extend : 'Ext.app.Controller',

            //define the stores
            stores : ['Items'],
            //define the models
            models : ['Item'],
            //define the views
            views : ['item.List', 'item.Edit', 'item.MyNumberField'],

            //special method that is called when your application boots
            init : function() {
                //control function makes it easy to listen to events on
                //your view classes and take some action with a handler function
                            //when the viewport is rendered
                            'viewport > panel' : {
                                render : this.onPanelRendered
                            //when you double click on the grid layout
                            'itemlist' : {
                                itemdblclick : this.editItem
                            //when you click in the grid toolbar Add button
                            'itemlist button[action=add]' : {
                                click : this.addItem
                            //when you click on the Edit window save button
                            'itemedit button[action=save]' : {
                                click : this.updateItem

            onPanelRendered : function() {
                //just a console log to show when the panel si rendered
                console.log('The panel was rendered');

            addItem : function() {
                //create the window and set the mode to Add
                var view = Ext.widget('itemedit');
                view.addMode = true;

            editItem : function(grid, record) {
                //create the window for editing
                //the double click on the row sends the grid row record
                var view = Ext.widget('itemedit');
                //load the record into the form
                //get the Item Number field in the form and protect it

            updateItem : function(button) {
                //get access to the window using the button reference
                var win = button.up('window');
                //get access to the form using the window reference
                form = win.down('form');
                //Add an Item
                    //check if the form passed all validations
                        //if there are no errors then send the Add request to server
                            url: 'ItemMaintenance',
                            params: {
                            company: 1,
                            //this encodes the form values to a JSON object
                            addData: Ext.encode(form.getValues())
                            //method to call when the request is successful
                            success: this.onSaveSuccess,
                            //method to call when the request is a failure
                            failure: this.onSaveFailure
                        //close the window
                else {
                    //get reference to the record
                    record = form.getRecord();
                    //get reference to the form values
                    values = form.getValues();
                    //set the record with new values
                    //close the window
                    //Ask the stote to sync the new data with the server
            onSaveFailure: function(err){
                //Alert the user about communication error
                Ext.MessageBox.alert('Status', 'Error occured during Item Add');
            onSaveSuccess: function(response){
                //Alert the user about communication error
                Ext.MessageBox.alert('Status', 'Item successfully Added');
                //load the store to get the new Item that was added

Now we need to work on the server side so that our ExtJs request can be processed!
Lets define the Java bean, JDBC connections to the database and our Servlet that will interact with the ExtJs application.

ExtJs 4 MVC Architecture tutorial using Java Servlets

Step 10: Define the java bean - Item.java

package com.as400samplecode.util;

public class Item {
    String status = null;
    String item = null;
    String desc1 = null;
    String desc2 = null;
    Double weight = null;
    public String getStatus() {
        return status;
    public void setStatus(String status) {
        this.status = status;
    public String getItem() {
        return item;
    public void setItem(String item) {
        this.item = item;
    public String getDesc1() {
        return desc1;
    public void setDesc1(String desc1) {
        this.desc1 = desc1;
    public String getDesc2() {
        return desc2;
    public void setDesc2(String desc2) {
        this.desc2 = desc2;
    public Double getWeight() {
        return weight;
    public void setWeight(Double weight) {
        this.weight = weight;

Click here for next Chapter
