ExtJs 4 ComboBox tutorial using Java Servlet, JSON and MySQL database - Part 3

Click here for previous Chapter
In previous chapters we have defined our ExtJs sample application that explains the use of Local and Remote query Methods. Also we saw how to define a custom template for a ComboBox display. In this chapter we are going to define the following
  • Dynamic web application config file
  • MySQL data resource for Tomcat
  • Country Java Bean
  • Web application utility methods that will process the ComboBox requests
  • Web application Servlet to interact with the ExtJs application using JSON and Ajax Requests

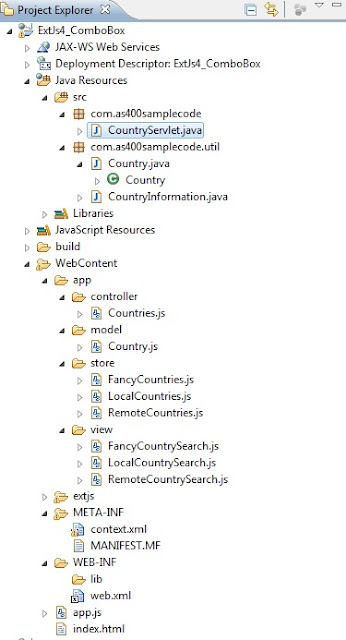

ExtJs 4 ComboBox using Java Servlet JSON object and MySQL database

Java Web Application config file web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">
  <display-name>ExtJs4_ComboBox</display-name>
  <welcome-file-list>
    <welcome-file>index.html</welcome-file>
    <welcome-file>index.htm</welcome-file>
    <welcome-file>index.jsp</welcome-file>
    <welcome-file>default.html</welcome-file>
    <welcome-file>default.htm</welcome-file>
    <welcome-file>default.jsp</welcome-file>
  </welcome-file-list>
  <servlet>
    <description>Country Servlet</description>
    <display-name>CountryServlet</display-name>
    <servlet-name>CountryServlet</servlet-name>
    <servlet-class>com.as400samplecode.CountryServlet</servlet-class>
  </servlet>
  <servlet-mapping>
    <servlet-name>CountryServlet</servlet-name>
    <url-pattern>/CountryServlet</url-pattern>
  </servlet-mapping>
  <resource-ref>
    <description>MySQL Datasource</description>
    <res-ref-name>jdbc/mysql</res-ref-name>
    <res-type>javax.sql.DataSource</res-type>
    <res-auth>Container</res-auth>
    <res-sharing-scope>Shareable</res-sharing-scope>
  </resource-ref>
</web-app>

Java Web Application MySQL data resource file context.xml

<?xml version="1.0" encoding="UTF-8"?>
<Context reloadable="true">
<Resource auth="Container"
name="jdbc/mysql"
type="javax.sql.DataSource"
driverClassName="com.mysql.jdbc.Driver"
url="jdbc:mysql://localhost:3306/world"
username="root"
password="mysql"
maxIdle="10"
maxActive="200"
maxWait="5"
removeAbandoned="true"
removeAbandonedTimeout="1200"
/>
</Context>

Java bean Country.java

package com.as400samplecode.util;

public class Country {

    String code = null;
    String name = null;
    String continent = null;
    String region = null;
    Double lifeExpectancy = null;
    Double gnp = null;

    public String getCode() {
        return code;
    }
    public void setCode(String code) {
        this.code = code;
    }
    public String getName() {
        return name;
    }
    public void setName(String name) {
        this.name = name;
    }
    public String getContinent() {
        return continent;
    }
    public void setContinent(String continent) {
        this.continent = continent;
    }
    public String getRegion() {
        return region;
    }
    public void setRegion(String region) {
        this.region = region;
    }
    public Double getLifeExpectancy() {
        return lifeExpectancy;
    }
    public void setLifeExpectancy(Double lifeExpectancy) {
        this.lifeExpectancy = lifeExpectancy;
    }
    public Double getGnp() {
        return gnp;
    }
    public void setGnp(Double gnp) {
        this.gnp = gnp;
    }


}

Java Web Application utility functions to process the ComboBox requests CountryInformation.java

package com.as400samplecode.util;

import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.PreparedStatement;
import java.util.ArrayList;

import javax.naming.Context;
import javax.naming.InitialContext;
import javax.sql.DataSource;

public class CountryInformation {

    Connection conn = null;
    PreparedStatement stmt = null;
    String sql = null;

    public ArrayList<Country> getItems(String start, String limit, String query) {

        ArrayList<Country> countryList = new ArrayList<Country>();

        try {
            Context ctx = (Context) new InitialContext().lookup("java:comp/env");
            conn = ((DataSource) ctx.lookup("jdbc/mysql")).getConnection();

            sql = "Select * from COUNTRY ";
            if(query != null){
                if(query.trim().equalsIgnoreCase("")){
                    sql = sql + "where code = '@@@' ";
                }
                else {
                    query = query.toUpperCase();
                    sql = sql + "where ucase(name) like '" + query + "%' ";
                }
            }

            sql = sql + "order by name,code LIMIT ?,?";
            stmt = conn.prepareStatement(sql);
            stmt.setInt(1, Integer.parseInt(start));
            stmt.setInt(2, Integer.parseInt(limit));
            ResultSet rs = stmt.executeQuery();

            while(rs.next()){
                Country country = new Country();
                country.setCode(rs.getString("code").trim());
                country.setName(rs.getString("name").trim());
                country.setContinent(rs.getString("continent").trim());
                country.setRegion(rs.getString("region").trim());
                country.setLifeExpectancy(rs.getString("lifeExpectancy") == null ? new Double(0) : Double.parseDouble(rs.getString("lifeExpectancy").trim()));
                country.setGnp(rs.getString("gnp") == null ? new Double(0)  : Double.parseDouble(rs.getString("gnp").trim()));
                countryList.add(country);
            }

            rs.close();
            stmt.close();
            stmt = null;


            conn.close();
            conn = null;

        }
        catch(Exception e){System.out.println(e);}

        finally {

            if (stmt != null) {
                try {
                    stmt.close();
                } catch (SQLException sqlex) {
                    // ignore -- as we can't do anything about it here
                }

                stmt = null;
            }

            if (conn != null) {
                try {
                    conn.close();
                } catch (SQLException sqlex) {
                    // ignore -- as we can't do anything about it here
                }

                conn = null;
            }
        }

        return countryList;

    }

    public int getTotalCount(String query) {

        int totalCount = 0;

        try {
            Context ctx = (Context) new InitialContext().lookup("java:comp/env");
            conn = ((DataSource) ctx.lookup("jdbc/mysql")).getConnection();

            sql = "Select count(*) from COUNTRY ";
            if(query != null){
                if(query.trim().equalsIgnoreCase("")){
                    sql = sql + "where code = '@@@' ";
                }
                else {
                    query = query.toUpperCase();
                    sql = sql + "where ucase(name) like '" + query + "%' ";
                }
            }
            sql = sql + "order by name,code";
            stmt = conn.prepareStatement(sql);

            ResultSet rs = stmt.executeQuery();
            while(rs.next()){
                totalCount = rs.getInt(1);
                break;
            }

            rs.close();
            stmt.close();
            stmt = null;


            conn.close();
            conn = null;

        }
        catch(Exception e){System.out.println(e);}

        finally {


            if (stmt != null) {
                try {
                    stmt.close();
                } catch (SQLException sqlex) {
                    // ignore -- as we can't do anything about it here
                }

                stmt = null;
            }

            if (conn != null) {
                try {
                    conn.close();
                } catch (SQLException sqlex) {
                    // ignore -- as we can't do anything about it here
                }

                conn = null;
            }
        }

        return totalCount;

    }


}

Java Servlet to process Ajax Requests and send JSON object CountryServlet.java

package com.as400samplecode;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.ArrayList;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import net.sf.json.JSONArray;
import net.sf.json.JSONObject;

import com.as400samplecode.util.Country;
import com.as400samplecode.util.CountryInformation;

public class CountryServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    public CountryServlet() {
        super();
    }

    protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
        doPost(request,response);
    }

    protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {

        String start = request.getParameter("start");
        String limit = request.getParameter("limit");
        String query = request.getParameter("query");

        PrintWriter out = response.getWriter();
        response.setContentType("text/html");

        JSONArray arrayObj=new JSONArray();

        CountryInformation countryInformation = new CountryInformation();
        ArrayList<Country> countryList = countryInformation.getItems(start,limit,query);
        for(int i=0;i<countryList.size();i++){
            Country country = countryList.get(i);
            JSONObject itemObj = JSONObject.fromObject(country);
            arrayObj.add(itemObj);
        }

        JSONObject myObj = new JSONObject();
        myObj.put("success", true);
        myObj.put("countries", arrayObj);
        myObj.put("totalCount", countryInformation.getTotalCount(query));

        out.println(myObj.toString());
        out.close();

    }

}
